304 Stainless Steel Ozone 2000kg/H Fruit Vegetable Washing Machine

Product Categories

French Fries Production Line [20]
Potato Chips Production Line [9]
Banana Chips Production Line [8]
Fruit Vegetable Washing Machine [24]
Industrial Frying Machine [36]
Fruit Vegetable Drying Machine [99]
Vegetable Cutting Machines [30]
Vegetable Peeling Machine [15]
Bubble Washing Machine [24]
Blanching Machine [17]
Food Packaging Machine [61]
Food Freezing Machine [41]
Nuts Production Line [18]
Corn Flake Production Line [12]
Poultry Machinery [28]
Pasta Machinery [32]
Other Electrical Appliances [14]

zhengzhou zhiyin Industrial Co., Ltd.

Contact Now

304 Stainless Steel Ozone 2000kg/H Fruit Vegetable Washing Machine

Brand Name : NO

Model Number : Washing-Line

Place of Origin : Shandong,China

MOQ : 1set

Price : USD7500-9200/Sets

Payment Terms : T/T, Western Union

Supply Ability : 2sets/Month

Delivery Time : 35-60Days

Packaging Details : Standard export wooden cases, full container

Name : Automatic Vegetable Washing Machine

Condition : New

Applicable Industries : Hotels, Food & Beverage Factory, Food Shop, Food & Beverage Shops

After Warranty Service : Online support

Marketing Type : New Product 2020

Core Components : PLC, Engine, Motor, Pump

Voltage : 220v/380v

Power : 0.8kw

Machinery Function : Washing

Raw material : Water, Fruit, Vegetables

Washing type : Cyclic eddy current cleaning

Material : SUS 304 Stainless Steel

Used for : Cutted leaf vegetable

MOQ : 1 Set

Application fields : Snack food factory, Meat processing plants, Fruit processing plant, Cooking oil factory, Vegetable processing plant, Seasoning plant, Frozen food Factory

Keywords : Vegetable Fruit Washing Cleaning Machine

Warranty : 1 Year

Contact Now

304 stainless steel Automatic Vegetable Washing Machine Vegetable Ozone Washer 2000kg/h Fruit slices washing line

Please contact us about how to place an order:
Contact Person:	Mrs. Lisa
Job Title:	Manager
Business Phone:	086 15249674563
WhatsApp:	086 15249674563
WeChat:	086 15249674563
Skype:	086 15249674563
Email:	Sale@frenchfriesline.com/Lisa@frenchfriesline.com

Automatic Vegetable Washing Machine Vegetable Ozone Washer
Power	Power supply	External dimension	Production capacity
4.8KW	380V , 50HZ	420011501600mm	1000-2000kg/h

Scope of application:

Suitable for washing leafy vegetables, root vegetables and preserved fruits, such as: Chinese cabbage, lettuce,bo Bo, turnip, etc.This device is especially suitable for cutting and not easily sticking to the net belt.

One - An overview:

Vortex vibration cleaning machine is a new type of fruit and vegetable cleaning and processing machinery developed by ourcompany.It and other cleaning machines have two big differences, one is clean water, two is vibration transport materials.The machine mechanism is simple, low failure rate, compact structure, easy to operate, good cleaning effect, and good waterfiltration, high productivity.

Two - Working principle:

Vortexing is formed by using the cleaning water to make the material clean in the vortexing water.When the material is cleaned, it makes spiral movement together with the clean water in the cleaning tank. After the material is cleaned, it is pushed forward by the vibration conveying mechanism under the action of hydrodynamics and sent out of the cleaning machine.

Three - Main structures:

The machine is composed of a frame, a cleaning tank, a water pump, a water storage tank, a vibration conveyer, an electrical control system and a control switch.

Four- Main technical parameters:

1. Power: 4.8KW;

2. Power supply: 50HZ, 380V;

3. External dimension: 4200*1150*1600mm;

4. Production capacity: 1000-2000kg/h;

Automatic vegetable cleaning machine vegetable cleaning processing equipment professional cleaning line

Configuration instructions:This product configuration is: hoist + eddy current cleaning machine + eddy current cleaning machine

304 Stainless Steel Ozone 2000kg/H Fruit Vegetable Washing Machine

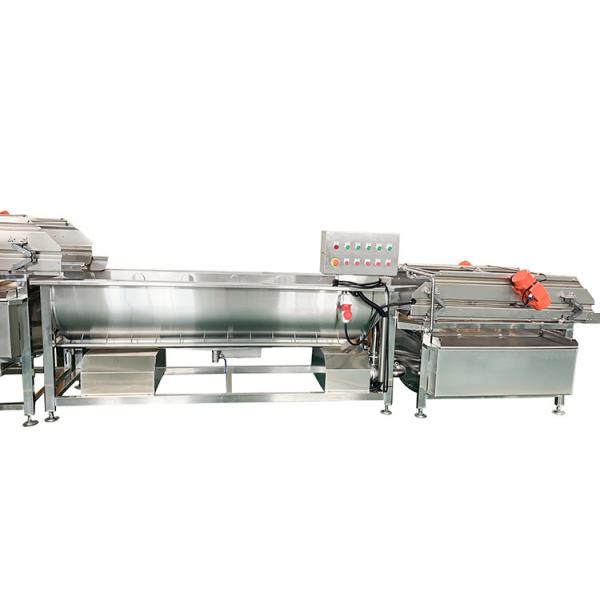

Industrial Fruit Vegetable Processing Machine ozone washing machine

Industrial Fruit Vegetable Processing Machine

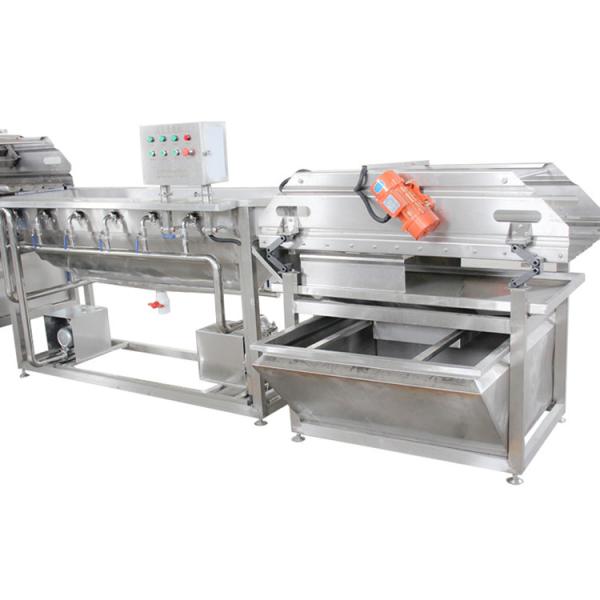

Industrial Fruit Vegetable Processing Machine ozone washing machine

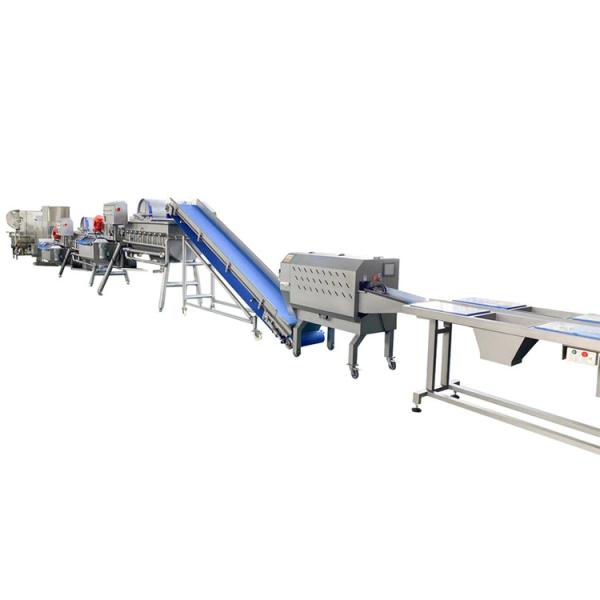

The design of the production line is generally as follows: selection table (and hob type vegetable cutter combined into one) + elevator + eddy current cleaning machine (first cleaning) + eddy current cleaning machine (ozone cleaning is added for the second time) + air dryer + packing.

304 Stainless Steel Ozone 2000kg/H Fruit Vegetable Washing Machine
